I took an old Lego piece and cut the joint off its shoulder to get a nice close up scan to draw some construction over.
Sick of arms...
Monday, March 31, 2014
Computer Modelling Journal, Week 4
I am currently working on the arms piece. There's a lot of consider when trying to understand the shape. I am being encouraged to avoid doing lofts and then just adding a radius to round the corners, except that from what I can tell, that is actually what the shape is. There its almost like there's an 8th of a sphere at the shoulder, then it rounds off and flattens out down to the elbow and is just a little tube from there on. I don't understand why I should be making it more complicated that it already is. Its not like a sports car where the shapes are supposed to look sleek and organic, this is a mini-figure's arm. So far I'm working with this...
Monday, March 24, 2014
Computer Modelling Journal, Week 3
Why does Solidworks have to show me error messages every time there is something to complain about? There should be errors displayed in a news feed style in the corner of the screen so that I can see when they occur, then address them accordingly. No, I do not want to use the wizard to solve the problem... It doesn't work. I do not want to have to deal with all your popup prompts each time I rebuild the model which I'm troubleshooting. I'll fix it when i fix it!
Problems this week...

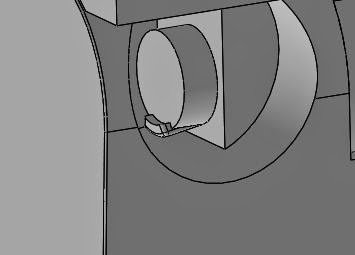

There is a lip overhanging there which I need to pull back... (Left) But that won't happen till i figure out why the holes in teh back of the Lego mini-figure's leg is not being centered and causing that tiny blip. (Right)
Problems this week...
There is a lip overhanging there which I need to pull back... (Left) But that won't happen till i figure out why the holes in teh back of the Lego mini-figure's leg is not being centered and causing that tiny blip. (Right)
Good news is that it looks pretty sweet so far. I've made a little block for it to stand on so that i can get some good measurement and alight the pieces and features to accurately fit onto a real Lego brick. Also, mirroring the leg piece was such a sleek process. I don't like having to rebuild the sketch as i make adjustments though.
I also made the head... I like this one.
Things left to do are the arms and hands. I don't feel like they will take as long because they don't connect to and Lego bricks. At the moment I'm still not sure what accessory I want to make for the mini-figure. Not to fear though... it can't be that hard, no matter what I decide to do.
Monday, March 17, 2014
Computer Modelling Journal, Week 2
This week I have been working on the Lego person model. The end goal is to have full technical drawings for all the parts of the Lego person.
I started with the head, mainly because it has the least complex shape. I went and bought a new Lego person from the shops so that I could have a little comparison between the Lego I already had at home. The head pieces have no longer got a hole in the top, which is kinda confusing. Isn't that a choking hazard?
As for the body, there is a hell of a lot of detail. They've gotten smarter about how they Lego's internal structure works. There's more emphasis on supporting ridges instead of just having thicker walls. There's a small area just inside the sides of the piece for the legs to slide into, as well as all the crazy convoluted support structures for making sure the pieces clip together properly. I've made sure to take careful note of any small details, especially around the arm sockets and the area that holds the legs. So far, this is what I've got in term of the model. I'm thinking I'll scan the Lego's decals and add them into the model, then do a comparison between the two.
Maybe I should get another Lego person and cut it open to get more detail....
After spending a good 10 minutes jotting down some measurements from the legs, I realised that the sizing of the bottom of the foot is dictated by the spacing of the Lego brick's notches. The legs also have a slight angle on their outer side. There's so much more detail that you would care to consider at a glance. So far I've modeled the leg, but I'm still unsure about the spacing and how it will go together with the hips. There's also the question about weather or no I'm happy with the way I've hollowed out the top section. It's not only a difficult and unusual shape in there, I'm not sure I fully understand it either. (Below Middle)
This week I've been abusing the "Convert Entities" tool to project geometry through to the face I'm working on. In Solidworks it took a little bit of tinkering to figure out how to do it, but eventually I got there. Also I had some trouble with trying to mirror a feature but then not being able to merge the body after I'd finished with the mirror tool. The work-around was to just go back and mirror the sketch I'd done a bunch more times to get the detailing inside the body part done. For all the parts I went with ABS Plastic (which is what Lego is made from) and a white mild gloss finish.
Next week should be the arm and hand pieces. I'm not looking forward to the awkward angles and trying to measure them with the vernier calipers. I might touch on the hips too.
I started with the head, mainly because it has the least complex shape. I went and bought a new Lego person from the shops so that I could have a little comparison between the Lego I already had at home. The head pieces have no longer got a hole in the top, which is kinda confusing. Isn't that a choking hazard?
As for the body, there is a hell of a lot of detail. They've gotten smarter about how they Lego's internal structure works. There's more emphasis on supporting ridges instead of just having thicker walls. There's a small area just inside the sides of the piece for the legs to slide into, as well as all the crazy convoluted support structures for making sure the pieces clip together properly. I've made sure to take careful note of any small details, especially around the arm sockets and the area that holds the legs. So far, this is what I've got in term of the model. I'm thinking I'll scan the Lego's decals and add them into the model, then do a comparison between the two.
Maybe I should get another Lego person and cut it open to get more detail....
After spending a good 10 minutes jotting down some measurements from the legs, I realised that the sizing of the bottom of the foot is dictated by the spacing of the Lego brick's notches. The legs also have a slight angle on their outer side. There's so much more detail that you would care to consider at a glance. So far I've modeled the leg, but I'm still unsure about the spacing and how it will go together with the hips. There's also the question about weather or no I'm happy with the way I've hollowed out the top section. It's not only a difficult and unusual shape in there, I'm not sure I fully understand it either. (Below Middle)
This week I've been abusing the "Convert Entities" tool to project geometry through to the face I'm working on. In Solidworks it took a little bit of tinkering to figure out how to do it, but eventually I got there. Also I had some trouble with trying to mirror a feature but then not being able to merge the body after I'd finished with the mirror tool. The work-around was to just go back and mirror the sketch I'd done a bunch more times to get the detailing inside the body part done. For all the parts I went with ABS Plastic (which is what Lego is made from) and a white mild gloss finish.
Next week should be the arm and hand pieces. I'm not looking forward to the awkward angles and trying to measure them with the vernier calipers. I might touch on the hips too.
Monday, March 10, 2014
Computer Modelling Journal, Week 1
This will be the first of many entries with regards to computer modelling for product design. Over the course of the next half year, i'll be recording any problems, triumphs or anything that's worth documenting regarding the process and experiences I come across while completing assignments. The software package I'll be using is Solidworks 2013. Hopefully there will be more pictures than words.
Once being given the technical Drawing for the bottle, It became clear that there wer some details that would be hard to see without a electronic copy to zoom in on. In particular the top of the bottle and teh base where the knurled feature is.
The top left image out of the following shows a small flat ridge after the first fillet from the bottle's top. Without it, the sketch is impossible to constrain. Also there is a detail where two concentric arcs are required to find a point of intersection which constrains the centre point of the arc just below that small flat ridge.
The top right image just explains the flat surface just before the very bottom of the bottle's upper section.
The final Product after a quick render...
This is the first part of the assignment done. Next to come is a little CAD Lego person and a 3D printed item for it to carry or be attached to. I'd thought of making a tiny Mech for it to sit in, but that might be a bit too big of a project for the time frame I've got. Maybe just robotic pants will suffice.
Once being given the technical Drawing for the bottle, It became clear that there wer some details that would be hard to see without a electronic copy to zoom in on. In particular the top of the bottle and teh base where the knurled feature is.
The top left image out of the following shows a small flat ridge after the first fillet from the bottle's top. Without it, the sketch is impossible to constrain. Also there is a detail where two concentric arcs are required to find a point of intersection which constrains the centre point of the arc just below that small flat ridge.
The top right image just explains the flat surface just before the very bottom of the bottle's upper section.
This bottom image was a little confusing because it leaves a lot to the imagination to try understand the shape of the 3D feature that is is trying to describe. With whats shown here, I presumed it is half of a football shape.
The sketches looked pretty alright to me afterwards.
This is the first part of the assignment done. Next to come is a little CAD Lego person and a 3D printed item for it to carry or be attached to. I'd thought of making a tiny Mech for it to sit in, but that might be a bit too big of a project for the time frame I've got. Maybe just robotic pants will suffice.
